| Place of Origin: | Sweden |
| Brand Name: | Sandvik |
| Model Number: | RDX5 |

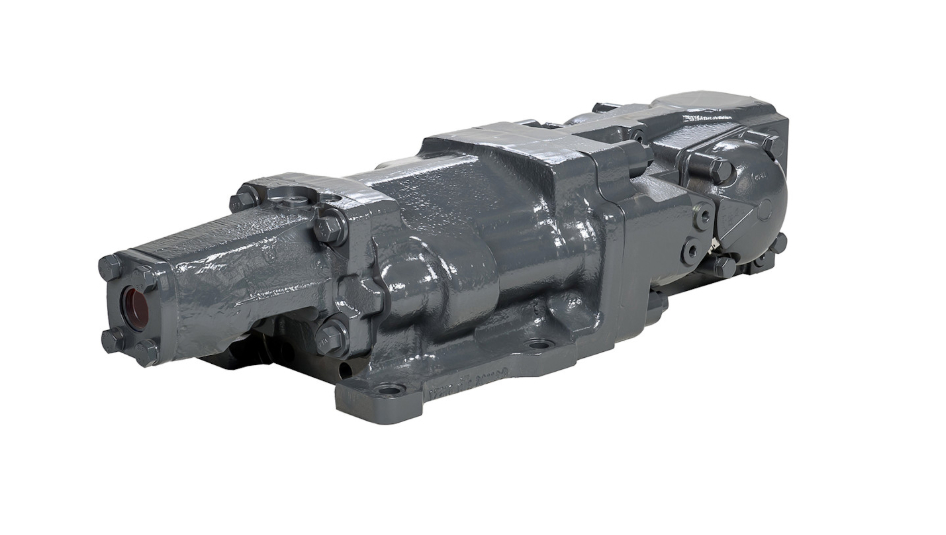

Sandvik RDX5 is a durable rock drill designed for heavy-duty rock drilling. It can be used for rock bolting, face drilling and long-hole drilling - performing in even the harshest conditions.
| Hole diameter drilling | 43 - 64 mm |
| Hole diameter reaming | 76 - 127 mm |
| Power class | 20 kW |
| Percussion rate | 67 Hz |
| Operating pressure Percussion Rotation (max.) |
120 - 220 bar 175 bar |
| Rotation motor type | OMS 80, OMS 125 or OMS 160 |
| Drill steels | R32, R39 or Hex 35 mm drifter rods, MF-rods highly recommended |
| Shanks | 45 mm / T38 / R32 / T35 / R38 / T45 |
| Weight | 210 kg |
| High pressure | 50 bar |
| Low pressure | 4 bar |
| Air flow | 250 - 350 l/min |
| Pressure | 4 - 7 bar |
| Oil consumption | 180 - 250 g/h |
