Hydraulic Custom Rock Drill PD380L For Crawler Underground Drilling

Product Details:

Place of Origin:	China
Brand Name:	Xianfeng

Detail Information

Place of Origin:

China

Brand Name:

Xianfeng

Features:

Easy To Use

Durability:

High

Size:

1 Inch

Design:

Spiral

Weight:

Lightweight

Width:

1.5 Inches

Height:

1.5 Inches

Usage:

Drilling

Highlight:

High Light

Highlight:

underground Custom Rock Drill

crawler Custom Rock Drill

PD380L crawler rock drill

Trading Information

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Carton

Delivery Time:

2-3 Weeks

Payment Terms:

T/T

Product Description

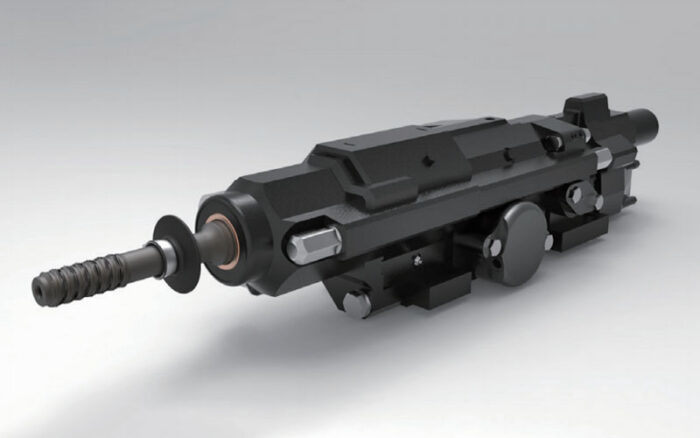

PD380L Hydraulic Rock Drill

The PD380L hydraulic rock drill is a high-performance drilling solution designed for underground mining, tunneling, and construction projects that require efficiency, precision, and durability. With advanced hydraulic control and a robust structure, it delivers consistent drilling power even in the toughest rock formations.

Engineered for productivity, the PD380L combines strong percussion energy with reliable torque output, ensuring deeper penetration and reduced drilling cycle times. Its compact and lightweight design enhances maneuverability, while the integration of Danfoss rotation motors provides exceptional stability and reliability during demanding operations.

The air-oil mist lubrication system minimizes wear on internal components, extending the service life of the drill. Its dual flushing system (air/water) further improves hole cleaning efficiency, ensuring smooth and continuous drilling performance.

Key Advantages

Optimized for medium-hole drilling up to 76 mm diameter
High impact energy (380 J) for faster penetration in hard rock
Strong torque capacity (1340 N·m) for stable operation
Equipped with Danfoss rotation motor for proven reliability
Air-oil mist lubrication reduces maintenance and downtime
Dual flushing system (air/water) ensures cleaner and more efficient drilling
Compact and lightweight design (190 kg) improves adaptability

Technical Data (Metric)

Specification	Value
Nominal Power Class	20 kW
Optimal Maximum Hole Diameter	76 mm
Drilling Depth	40 m
Impact Energy	380 J
Percussion Pressure	200 bar
Percussion Oil Flow	90 L/min
Rotation Motor	200 cc/r (Brand: DANFOSS)
Oil Inlet Rotation Pressure	200 bar
Rotation Flow	75 L/min
Max. Rotation Speed	175 rpm
Max. Torque	1340 N·m
Shank Size	T45
Lubrication	Air-oil mist
Air Lubrication Pressure	2.5–3.5 bar
Lubrication Air Flow	6 L/s
Flushing	Air/Water
Flushing Water Flow	70 L/min
Flushing Air Pressure	10 bar
Center Height	84 mm
Weight	190 kg
Accumulator Nitrogen Charging Pressure	100 bar
Buffer Accumulator Nitrogen Charging Pressure	25–35 bar

The PD380L hydraulic rock drill is an excellent choice for mining and tunneling contractors who require reliable, high-efficiency drilling equipment. It is built to maximize productivity while minimizing operating costs, making it a trusted tool for professional drilling operations worldwide.
