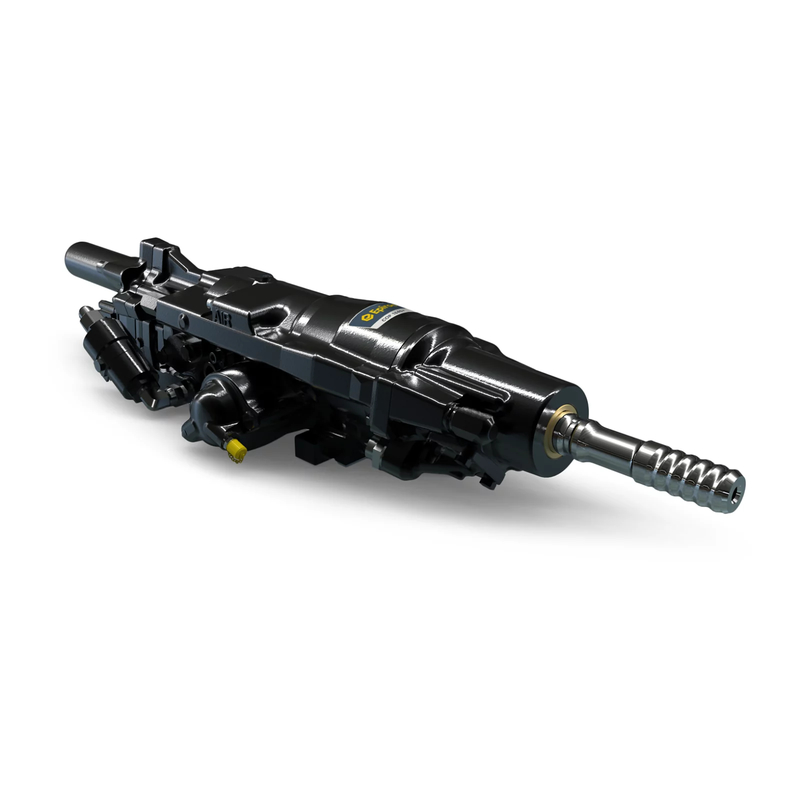

The Atlas Copco COP 2238 is a high-performance hydraulic rock drill designed for surface and underground drilling applications. It delivers exceptional drilling efficiency, reliability, and low operating costs. With advanced impact technology and precision engineering, the COP 2238 ensures superior penetration rates and reduced maintenance requirements, making it ideal for heavy-duty operations in mining and tunneling.
Weight: approx. 175 kg
Length: 1,040 mm
Hole Diameter Range: 38 – 64 mm
Impact Power: 22 kW
Impact Frequency: 60 Hz
Working Pressure: 200 bar
Rotation Speed: up to 280 rpm
Rotation Torque: 750 Nm
Shank Type: R32, R38, T38
Lubrication: Air-oil mist
Flushing Medium: Air or water
Applications: Surface drilling, underground tunneling, and quarrying
High drilling speed and excellent energy efficiency
Compact, robust design suitable for demanding rock conditions
Reliable hydraulic system ensures stable impact power
Low vibration and noise for operator comfort
Easy maintenance and long service life of wear parts
